Description
- *Makes tapping into an existing wire a quick and easy job, no special tools needed

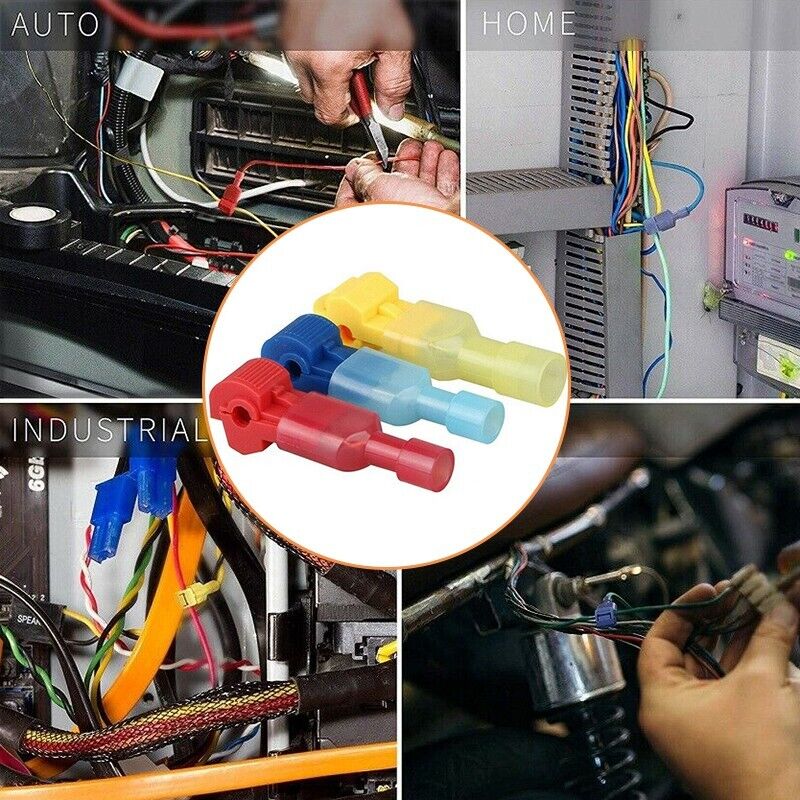

- *Widely used in the wire connection of automotive and motorcycle, home
- *Comply with all relevant US standard

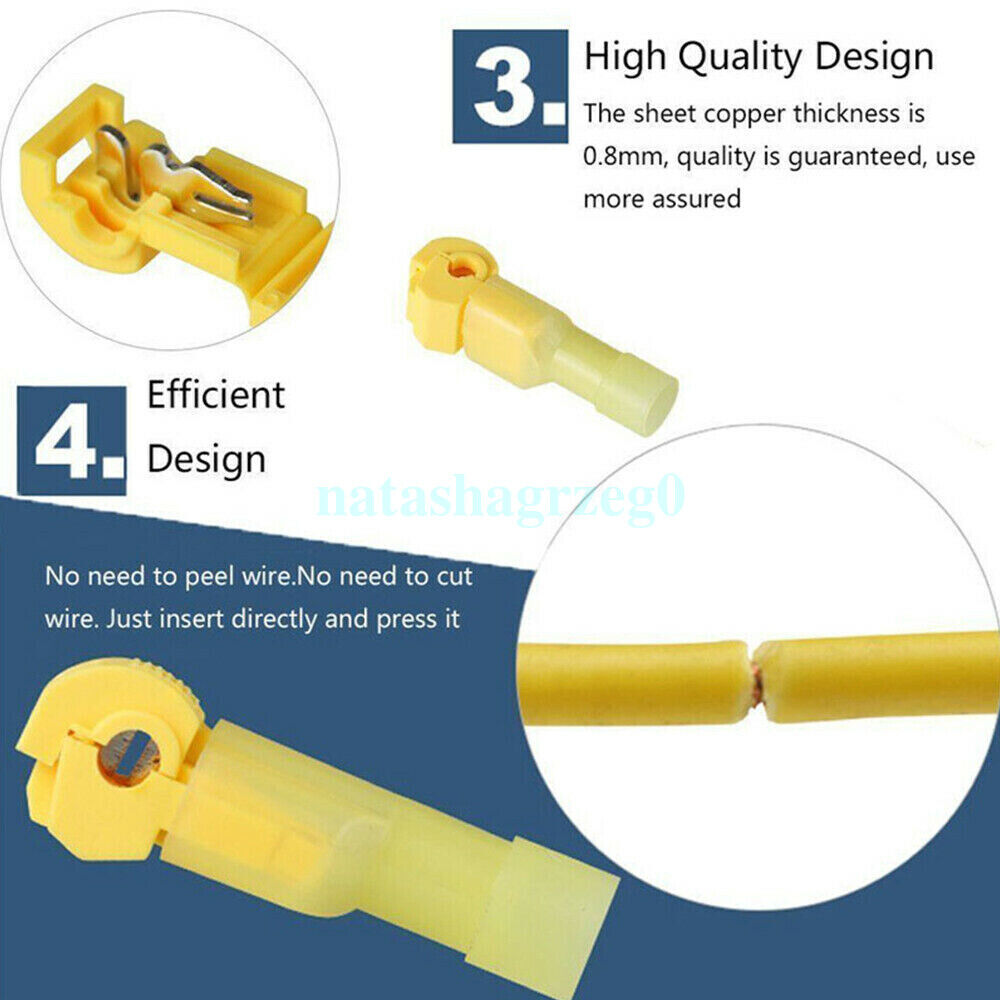

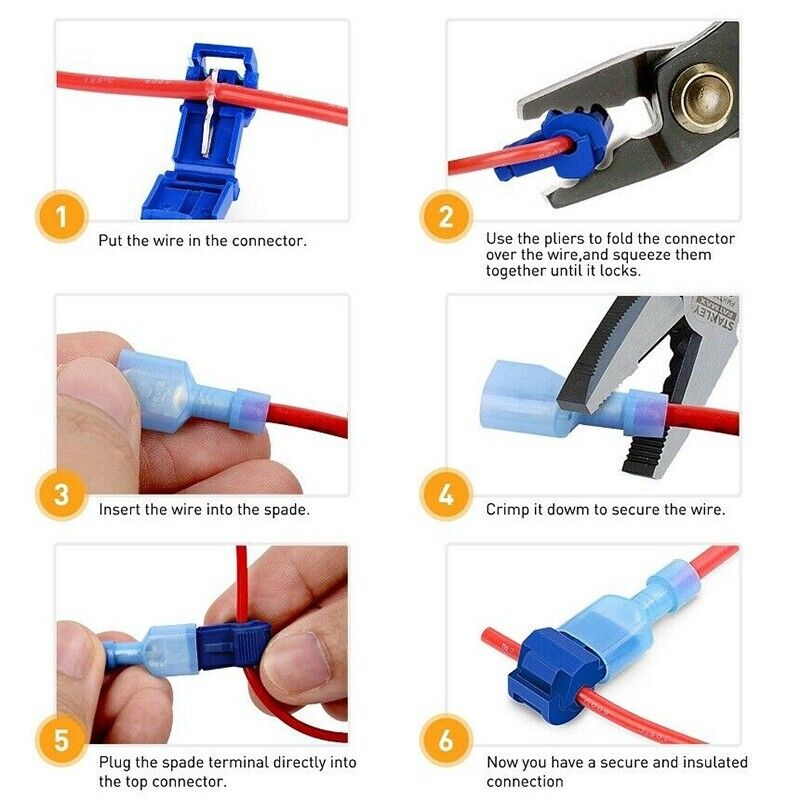

- *Use these self-stripping electrical tap connectors to electrically tap into a wire in mid-span without cutting or stripping the wire

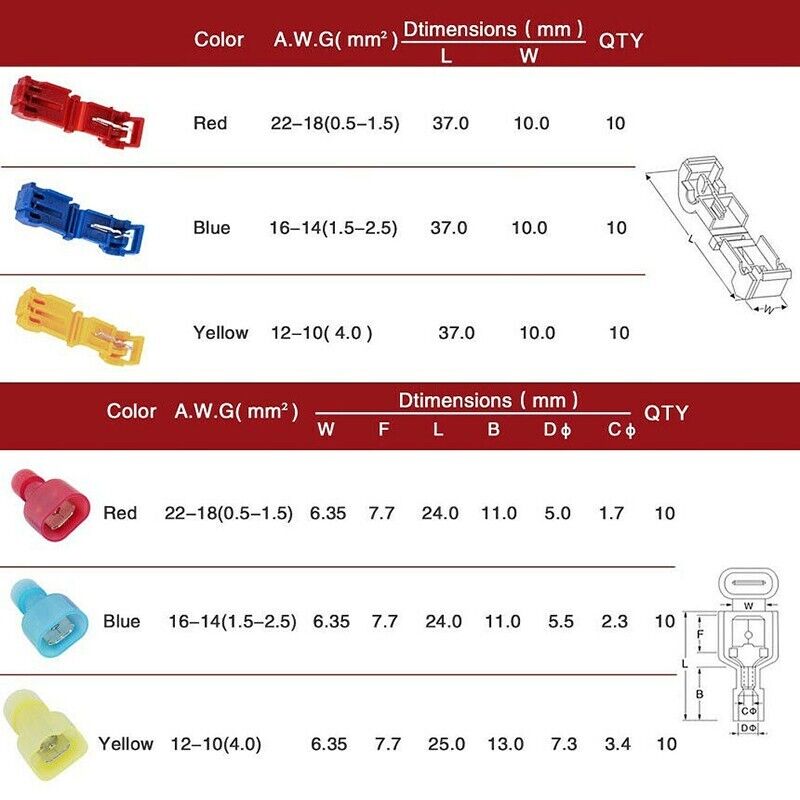

Specifications:
- *Material: PVC, Brass, Tinplate
- *Color: Red, Blue, Yellow
- *Male spade connector length: 2.5 cm
- *Quick splice wire connector length: 3.7 cm
- *Diameter: 0.35cm(Red); 0.45cm(Blue); 0.7cm(Yellow)
- *Terminals spade width: 6.3mm
- *Terminals width: 1.1cm
- *Red: suits cable/ wire sizes (0.5-1.5mm 22-16AWG)
- *Blue: suits cable/ wire sizes (1.5-2.5mm 16-14AWG)
- *Yellow: suits cable/ wire sizes (4.0-6.0mm 12-10AWG)

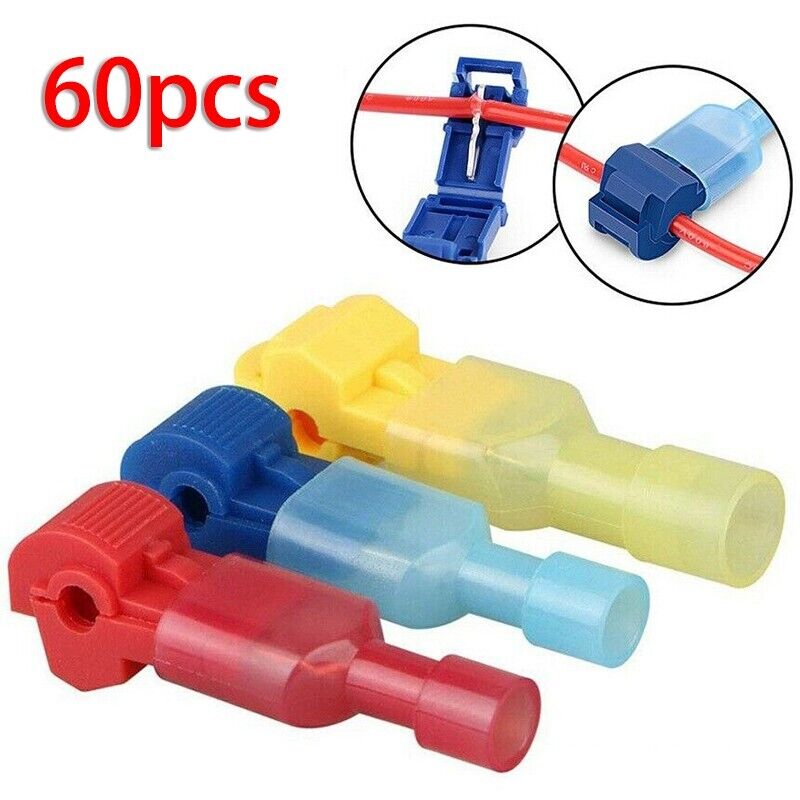

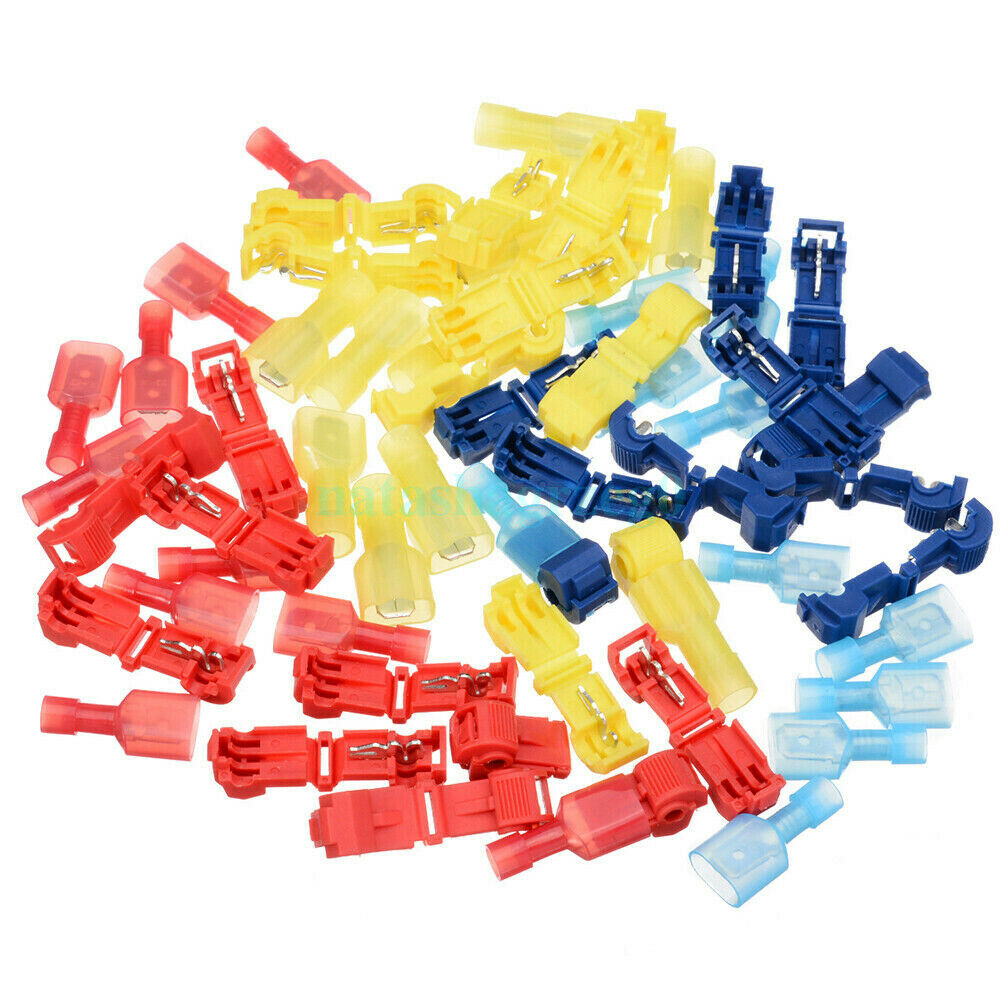

Package Include:
- 10pcs 87806 x 22-18AWG(0.5-0.75mm2) x Red Connector
- 10pcs 87816 x 18-14AWG(0.75-2.5mm2) x Blue Connector
- 10pcs 87826 x 12-10AWG(4.0-6.0mm2) x Yellow Connector
- 10pcs MDFN1.25-250 x 22-18AWG(0.5-1.5mm2) x Red Connector
- 10pcs MDFN2-250 x 16-14AWG(1.5-2.5mm2) x Blue Connector
- 10pcs MDFN5.5-250 x 12-10AWG(4.0-6.0mm2) x Yellow Connector
