Description

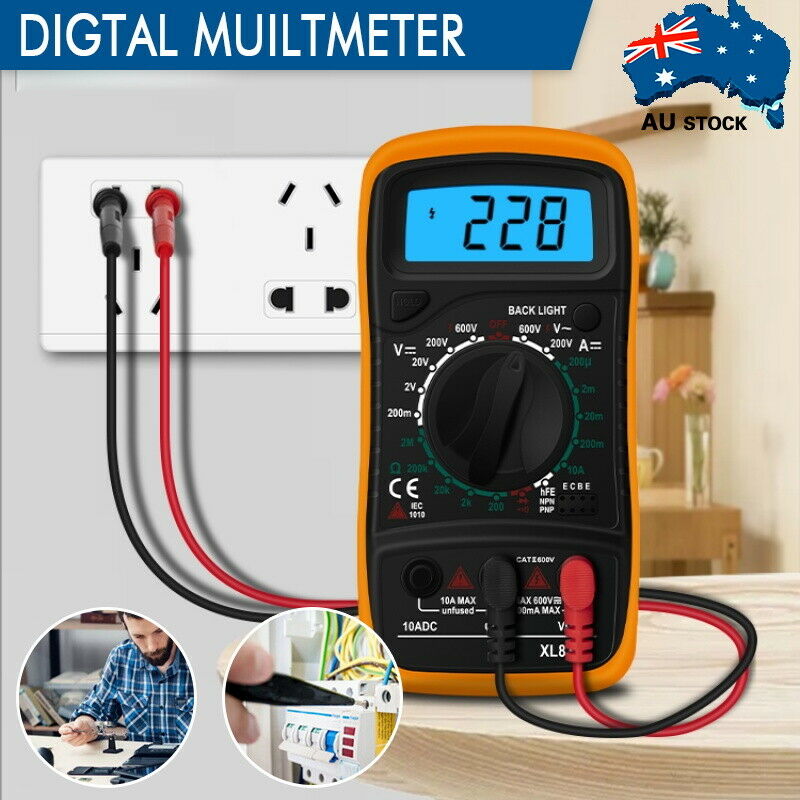

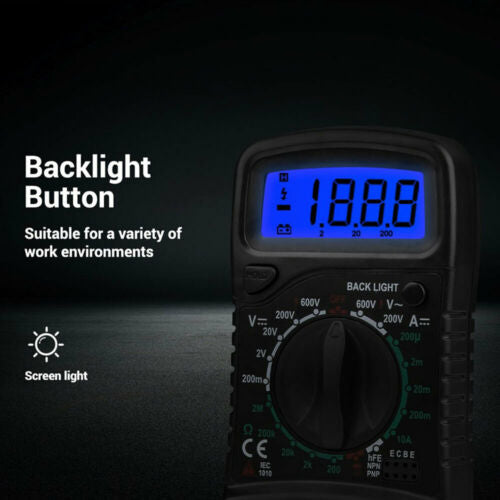

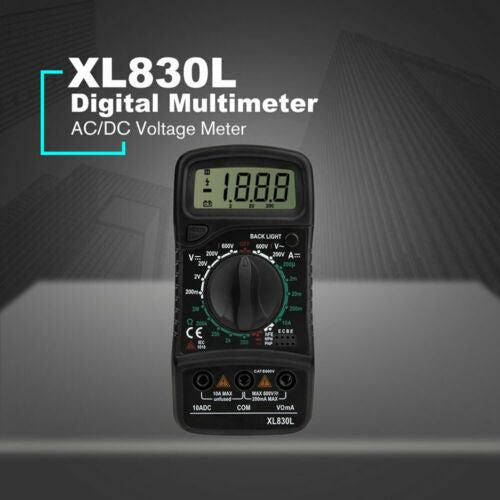

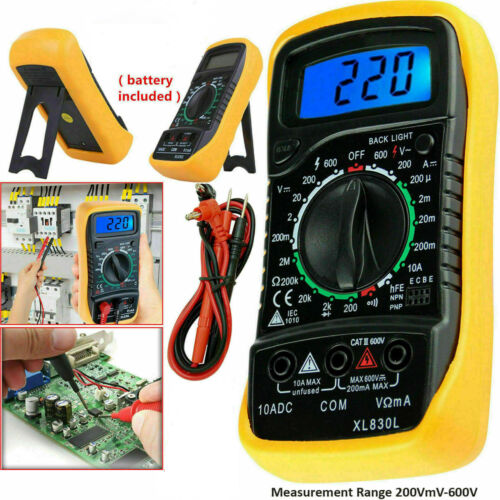

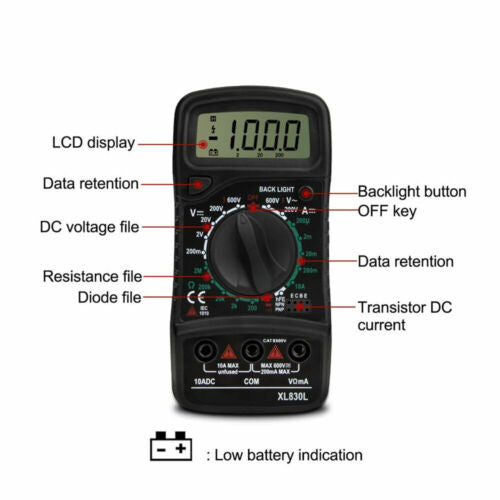

- LCD Digital Multimeter Large Display(15mm) with Back ground Light
- The meter is a handheld 3-1/2 digital mutimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, Transistor test

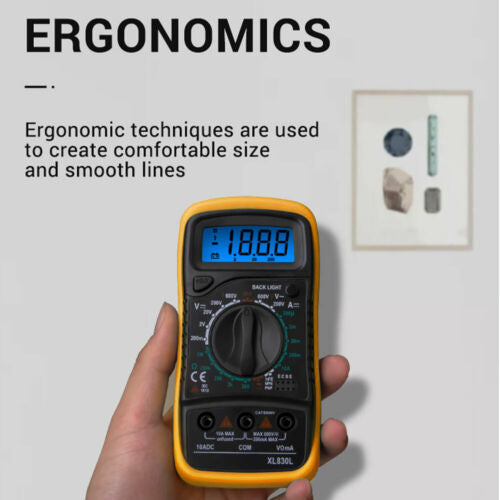

- Portable and compact design, easy to operate and the readings indicated directly on the screen
- Diode assembly test / Transistor P-N junction test / Transistor HFE test
- Overload Protection: F 200 mA / 250 V fuse. 10 A range not fused
- With battery operated (Free)
- Continuity test with buzzer sound in circuit
- Low battery voltage indication
- Max display: 1999, Auto polarity display. 3-1 / 2 digits large LCD display with max
- It can be use to overhaul all kinds of circuit boards
- Ideal teaching instrument for students, and ideal for use in fields, such as laboratory, workshop, and home application

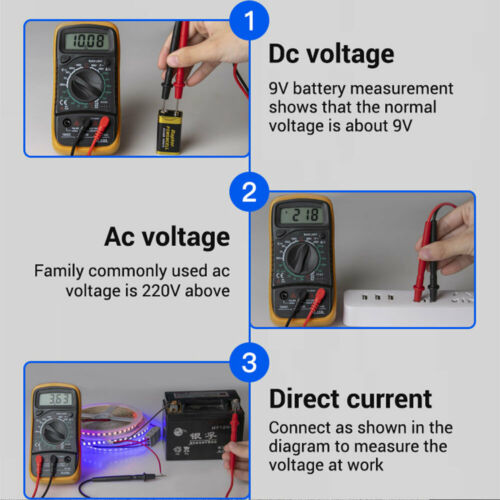

- DC Voltage: 2V / 20V / 200V / 600V
- AC Voltage: 200V / 600V
- DC Current: 20µA / 200µ A / 2mA / 20mA / 200mA / 10A
- Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ
- Size: Approx. 138 mm × 69 mm × 31 mm
- Weight: Approx. 160 g
- Maximum voltage between terminals and Earth Ground: CAT II 600 V
- Fuse Protection: F 200 mA / 250 V

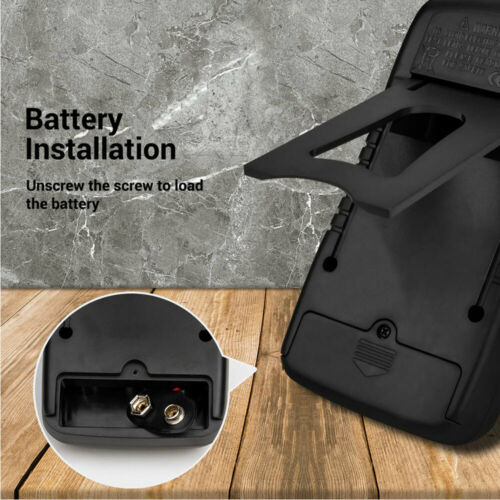

- Power: 9 V Battery NEDA 1640
- LCD Display: 1999 Counts, updates 2 to 3 per second
- Measuring method: Dual-slope integration ADC
- Over-range Indication: "1" on the display
- Polarity Indication: Negative symbol
- Operating Environment: 0 °C to 40 °C
- Storage Temperature: -10 °C to 50 °C
Specification:
- Size: Approx. 138 mm × 69 mm × 31 mm
Package

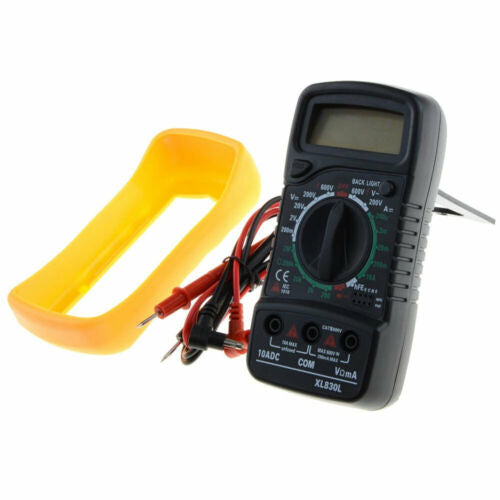

- 1 x Digital Multimeter
- 1 x Set of test leads (black+red)
- 1 x Battery
- 1 x Manual
