Description

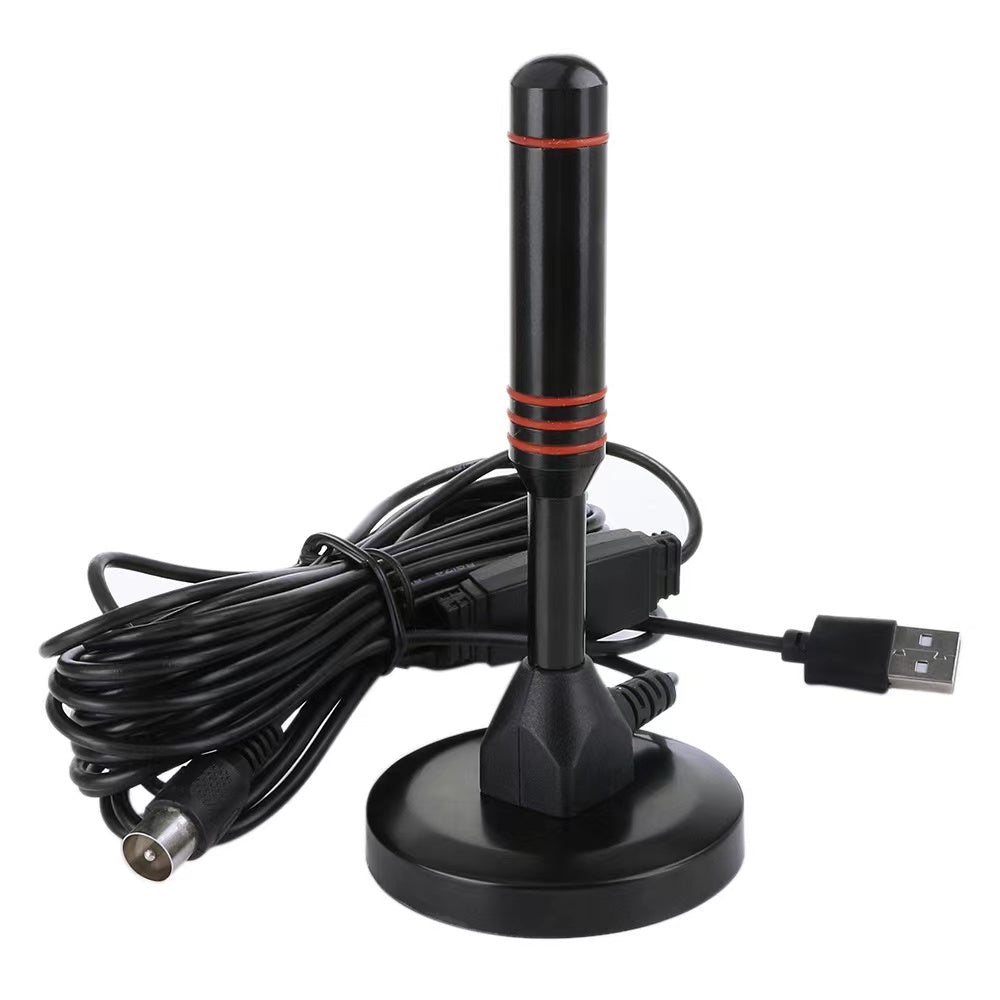

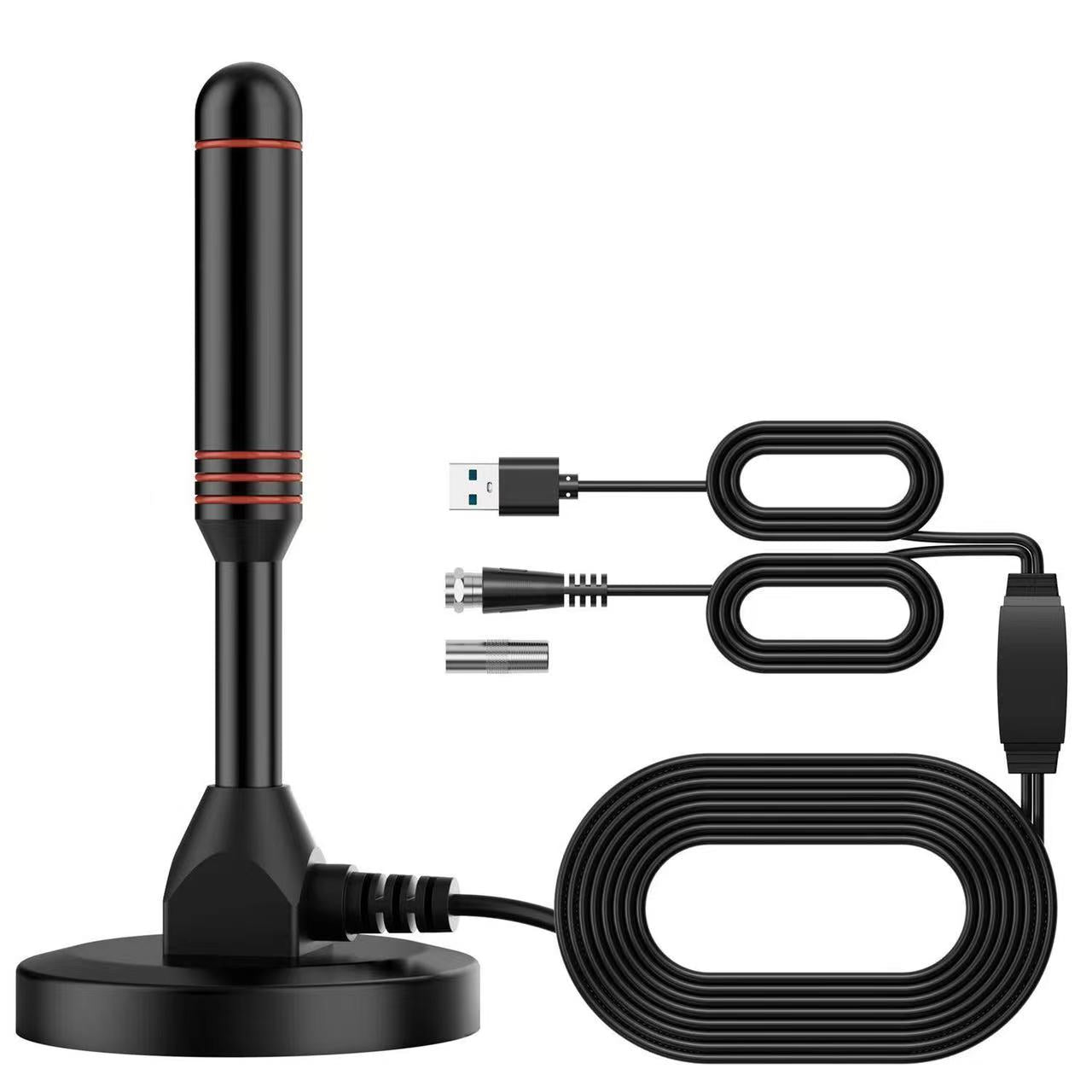

Item Type: 200 Mile Antenna
Working frequency: VHF(172-240mhz)/UHF(470-860mhz)
Connector: F male
Type: DVB-T2 Antenna
Received signal: ATSC, DVB-T, DVB-T2, ISDB
Signal range: 200 miles
Material: Metal+ABS
Colour: Black
Dimensions: about 2.44x5.12 inch (62x130mm)
Current consumption: 20mA
Impedance: 75Ω
Compatibility: 720p, 1080i, 1080p/atsc
Storage temperature: -45-85℃

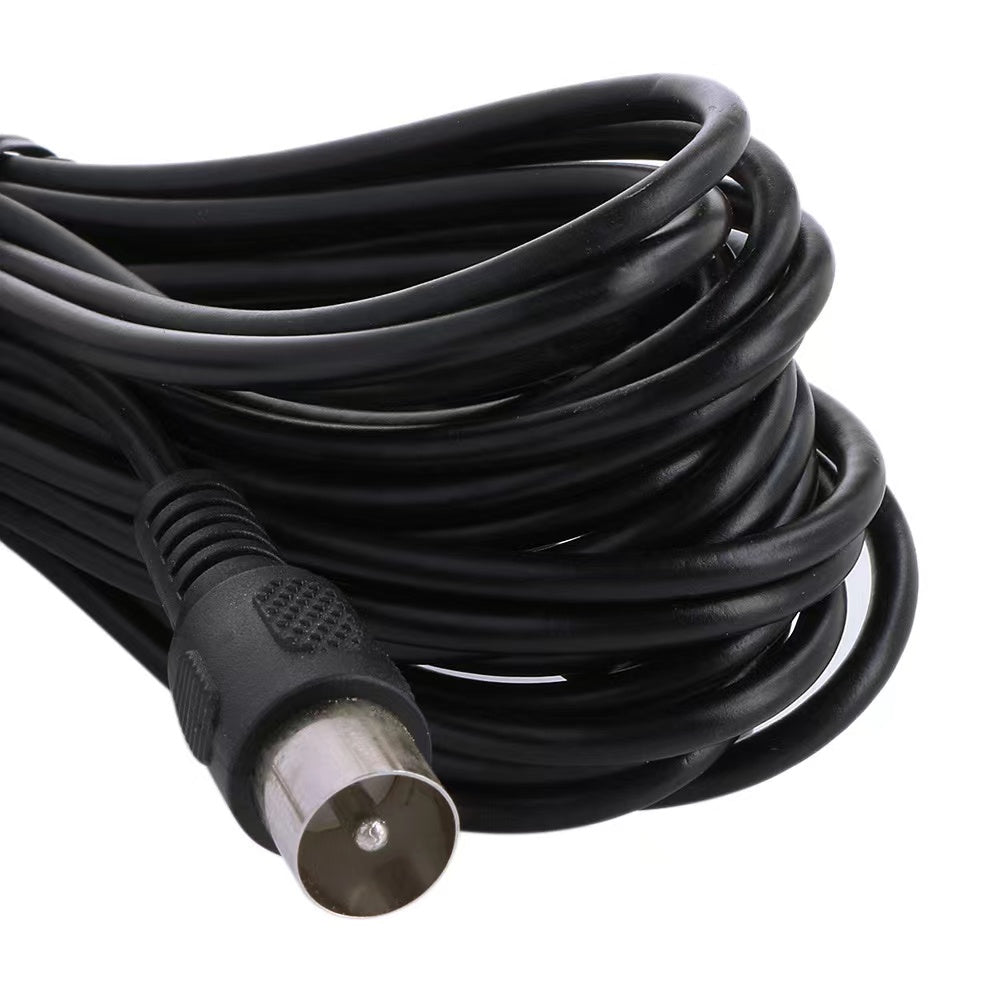

Cable length: approx. 4.5m/14.77ft
Working temperature: -45-85℃
Net Weight: 7.6 oz (216 g)
High lna gain: 25dbi
Voltage: 5V
Applicable scene: indoor office, RV, truck, yacht, etc.

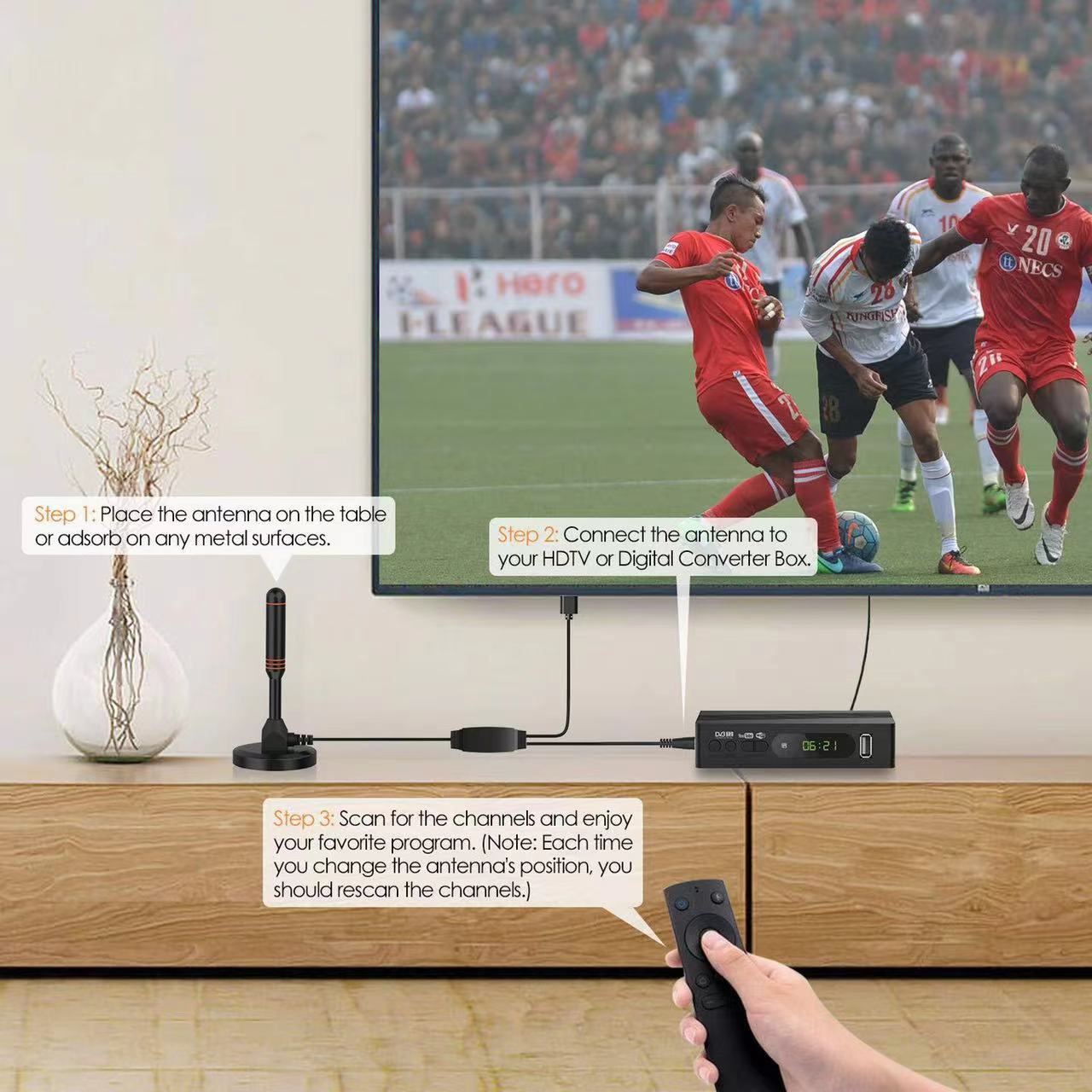

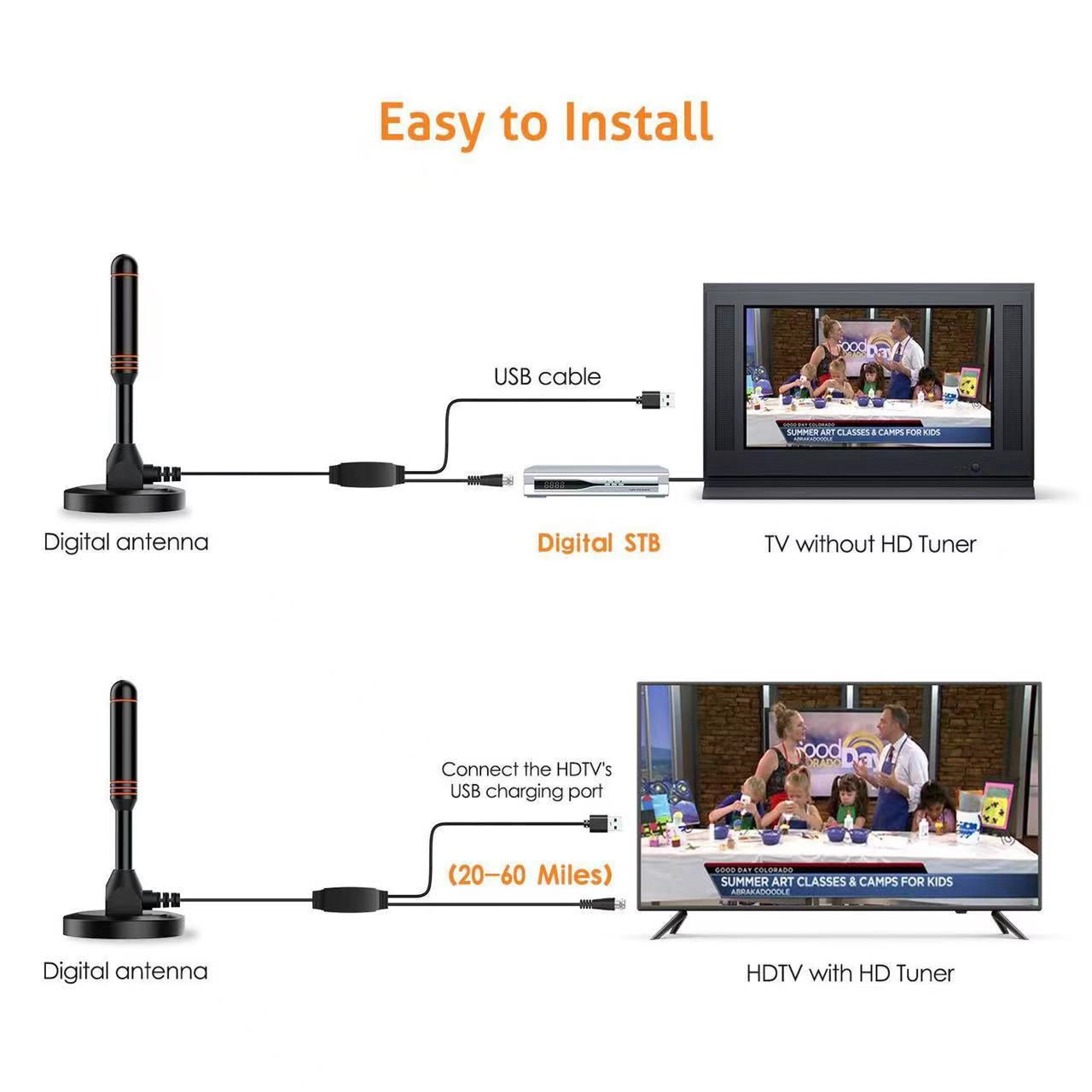

How to use:
Step 1: Connect the (F-Male) end of the attached coaxial cable to the ANT/IN connector on the back of the TV tuner or DVB-T.
Step 2: In the TV setup menu, set the tuner mode to Antenna or Air. For more detailed instructions, see your TV manual.
Step 3: In the TV setup menu, set TV to Scan by channels. This may sometimes be referred to as auto program, auto scan, channel scan, or channel scan. Consult the TV manual for detailed instructions.
Step 4: If reception is sporadic, try moving the antenna to another location and terminating the TV until the optimal position is found.
Step 5: Fix the antenna in the ideal position you found.
